Remaps Explained ....

An ECU remap (also known as an ECU tuning or engine remapping) involves modifying the software in a vehicle’s Electronic Control Unit (ECU). The ECU is the brain of the engine, controlling various aspects of engine performance, such as fuel delivery, ignition timing, boost pressure (in turbocharged vehicles), and more. The goal of an ECU remap is to optimize these parameters for better performance, fuel efficiency, or specific driving characteristics.

Here’s a more detailed explanation of what happens in an ECU remap:

1. Understanding the ECU:

The ECU is essentially a computer that controls the engine. It uses sensors to monitor things like temperature, air pressure, exhaust gas levels, and throttle position to adjust engine functions. The ECU stores a set of factory settings designed to make the vehicle run reliably under a wide range of conditions. These settings are conservative, aiming for optimal balance between performance, reliability, and emissions compliance.

2. What is a Remap?

A remap involves modifying the software or "map" inside the ECU to change how the engine performs. The software is usually called a "map" because it’s essentially a collection of instructions (code) that tells the ECU how to manage the engine’s various functions.

During a remap:

The fuel map (how much fuel the engine uses) may be altered.

The timing of the engine’s spark (ignition timing) can be changed.

Turbo boost levels can be adjusted for turbocharged vehicles.

Throttle response and rev limits may be modified.

The air-fuel ratio (AFR) can be optimized for better performance or efficiency.

3. Why Remap an ECU?

People remap their ECUs for a variety of reasons:

Power Gains: A remap can increase engine power by optimizing fuel delivery, ignition timing, and air intake settings. This is especially common with performance tuning, where you may see gains of 10-30% more horsepower and torque, depending on the vehicle.

Improved Fuel Efficiency: By remapping the ECU for more efficient fuel usage (often called eco-tuning), drivers can see improved fuel economy, especially during normal driving.

Turbocharged Vehicles: Remapping is common in turbocharged vehicles, where the boost levels can be increased safely, delivering more power without hardware upgrades.

Enhanced Throttle Response: A remap can improve throttle response, making the car feel more responsive, especially in lower RPMs.

Customized Driving Experience: Some drivers may want their vehicle to feel sportier, with more power at certain RPMs or smoother acceleration.

4. How is it Done?

Reading the ECU: The remapping process usually starts with reading the existing data from the ECU using a diagnostic tool or OBD (On-Board Diagnostics) interface. This creates a copy of the current software.

Modifying the Map: The tuner or technician then uses specialized software to modify the map, adjusting various parameters like air-fuel ratios, boost levels, and ignition timing to achieve the desired outcomes (more power, better efficiency, etc.).

Writing the New Map: Once the map is modified, it’s written back to the ECU, replacing the factory settings with the new custom settings.

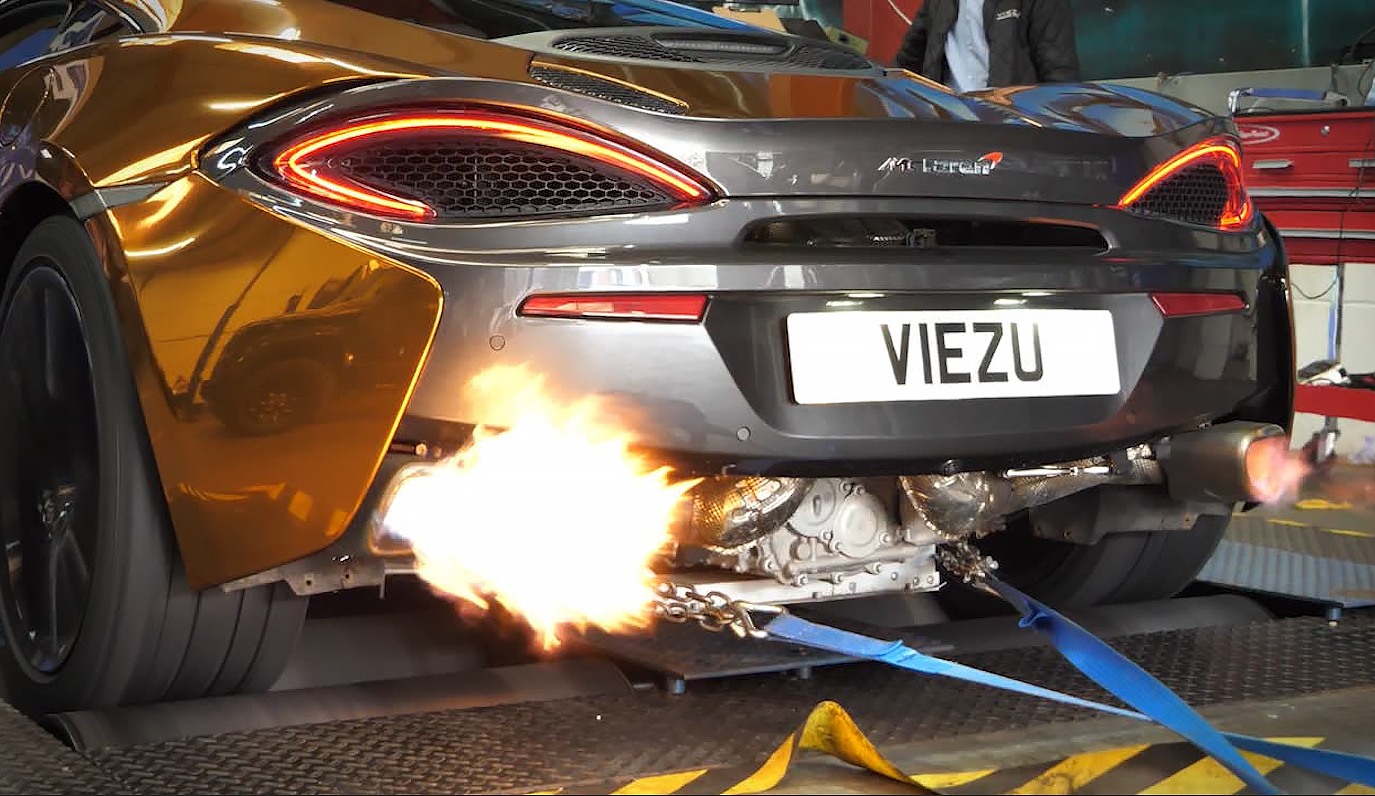

Testing: The car is usually road-tested or put on a dyno (a machine that measures engine power) to ensure the new settings provide the desired performance without causing issues like knocking, overheating, or excessive fuel consumption.

5. Types of ECU Remaps:

Performance Remap: Aimed at increasing horsepower, torque, and throttle response, often at the expense of fuel economy and emissions. This is common for sports cars, track cars, or enthusiasts.

Economy Remap: Focuses on improving fuel efficiency by adjusting fuel delivery and optimizing engine settings for less power but better miles per gallon (mpg). Ideal for those who want to save fuel during everyday driving.

Towing Remap: Specifically designed for vehicles used for towing. It enhances low-end torque to make towing easier and more efficient without over-stressing the engine.

Custom Remaps: For vehicles with aftermarket parts (like larger turbos or performance exhausts), a custom remap can fine-tune the ECU to ensure the new parts work seamlessly with the engine.

6. Risks and Considerations:

While ECU remapping can offer many benefits, there are some risks:

Warranty Voiding: Many manufacturers void warranties if the ECU is remapped, as it can lead to unforeseen problems.

Engine Stress: Pushing an engine beyond its factory settings can cause overheating, knocking, or excessive wear if not done properly. It’s important to make sure the remap is done by a professional with the right knowledge.

Increased Emissions: Some remaps, especially performance-oriented ones, may increase emissions and potentially make the car less environmentally friendly or illegal in certain jurisdictions.

Reliability: A poorly executed remap can result in engine damage, unreliable performance, or even system failures.

7. Is It Worth It?

Whether an ECU remap is worth it depends on your goals:

If you want more power, especially in turbocharged or diesel vehicles, a remap can deliver significant improvements.

If you’re looking to increase fuel efficiency or make your car more responsive, remapping can also be beneficial.

If you’re looking for a more personalized driving experience or to enhance a vehicle with aftermarket modifications, a custom remap could be a good investment.

8. Post-Remap Maintenance:

After remapping, some additional maintenance or modifications might be necessary:

Coolant and Oil: With more power, the engine may run hotter, so keeping an eye on coolant levels and engine oil is essential.

Upgraded Hardware: In some cases, a remap may require supporting hardware changes, like upgraded fuel injectors, intercoolers, or exhaust systems, especially for big power gains.

In short, ECU remapping is a way to "reprogram" a vehicle's brain to perform better or more efficiently based on your specific needs. However, it’s important to have the process done by a professional to ensure the changes are safe and reliable.

PLEASE NOTE ALL VEHICLE MODIFICATIONS SHOULD BE REPORTED TO YOUR INSURANCE COMPANY , FAILURE TO DO SO IS AT YOUR OWN RISK !
